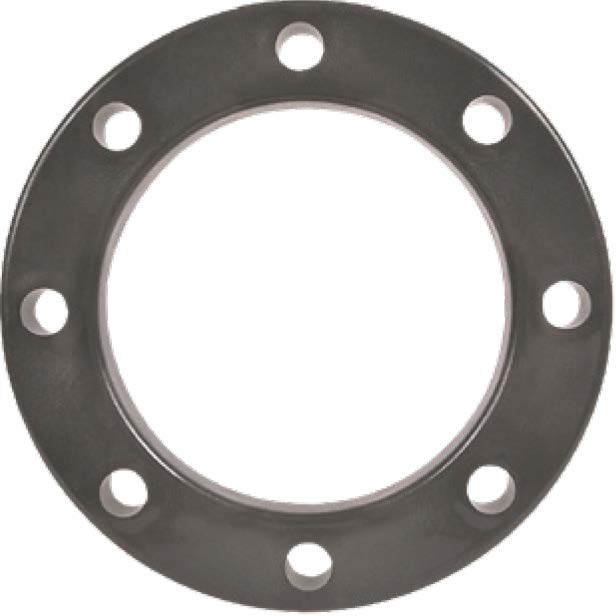

SLIP ON FLANGES

Name: SLIP ON FLANGES - GS MARINE
SKU: 23556
Availability: InStock
Rating: 5 (970 reviews)

DIN PN16 FLAT FACED,SS400 MATERIAL

DN	Code	Flange OD	PCD	Holes x Dia	Thickness
10	735571	90	60	4 \| 14	16
15	735572	95	65	4 \| 14	16
20	735573	105	75	4 \| 14	18
25	735574	115	85	4 \| 14	18
32	735575	140	100	4 \| 18	18
40	735576	150	110	4 \| 18	18
50	735577	165	125	4 \| 18	20
65	735578	185	145	4 \| 18	22
80	735579	200	160	4 \| 18	24
100	735580	235	190	8 \| 22	24
125	735581	270	220	8 \| 26	26
150	735582	300	250	8 \| 26	28
175	735583	350	295	8 \| 30	32
200	735584	375	34	12 \| 30	34
250	735585	450	38	12 \| 33	38
300	735586	515	42	12 \| 33	42
350	735587	580	46	16 \| 36	46
400	735588	660	50	16 \| 39	50
450	735589	685	610	20 \| 39	42
500	735590	755	670	20 \| 42	44
175	735580	350	295	8 \| 30	28
