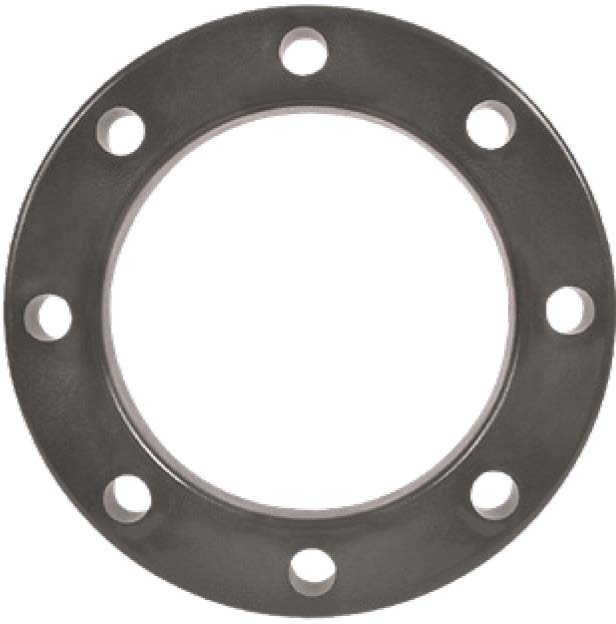

SLIP ON FLANGES
JIS B2210, 5K, FLAT FACED, SS400 MATERIAL
| DN | Code | Flange OD | PCD | Holes x Dia | Thickness |
|---|---|---|---|---|---|
| 15 | 734602 | 80 | 60 | 12 | 25 | 24 |
| 20 | 734603 | 85 | 65 | 4 | 12 | 10 |
| 25 | 734604 | 95 | 75 | 4 | 12 | 10 |
| 32 | 734605 | 115 | 90 | 4 | 12 | 12 |
| 40 | 734606 | 120 | 95 | 4 | 15 | 12 |
| 50 | 734607 | 130 | 105 | 4 | 15 | 14 |
| 65 | 734608 | 155 | 130 | 4 | 15 | 14 |
| 80 | 734609 | 180 | 145 | 4 | 15 | 14 |
| 100 | 734610 | 200 | 165 | 4 | 19 | 16 |
| 125 | 734611 | 235 | 200 | 8 | 19 | 16 |
| 150 | 734612 | 265 | 230 | 8 | 19 | 18 |
| 200 | 734613 | 320 | 230 | 8 | 19 | 20 |
| 250 | 734614 | 385 | 345 | 8 | 23 | 22 |
| 300 | 734615 | 430 | 390 | 12 | 23 | 22 |
| 350 | 734616 | 480 | 435 | 12 | 23 | 24 |
| 400 | 734617 | 540 | 495 | 12 | 25 | 24 |
| 450 | 734618 | 605 | 555 | 16 | 25 | 24 |
| 500 | 734619 | 655 | 605 | 16 | 25 | 24 |
| 550 | 734620 | 720 | 665 | 20 | 27 | 26 |
| 600 | 734621 | 770 | 715 | 20 | 27 | 26 |
| 650 | 734622 | 825 | 770 | 24 | 27 | 26 |
| 700 | 734623 | 875 | 820 | 24 | 27 | 26 |
| 750 | 734624 | 945 | 880 | 24 | 33 | 28 |
