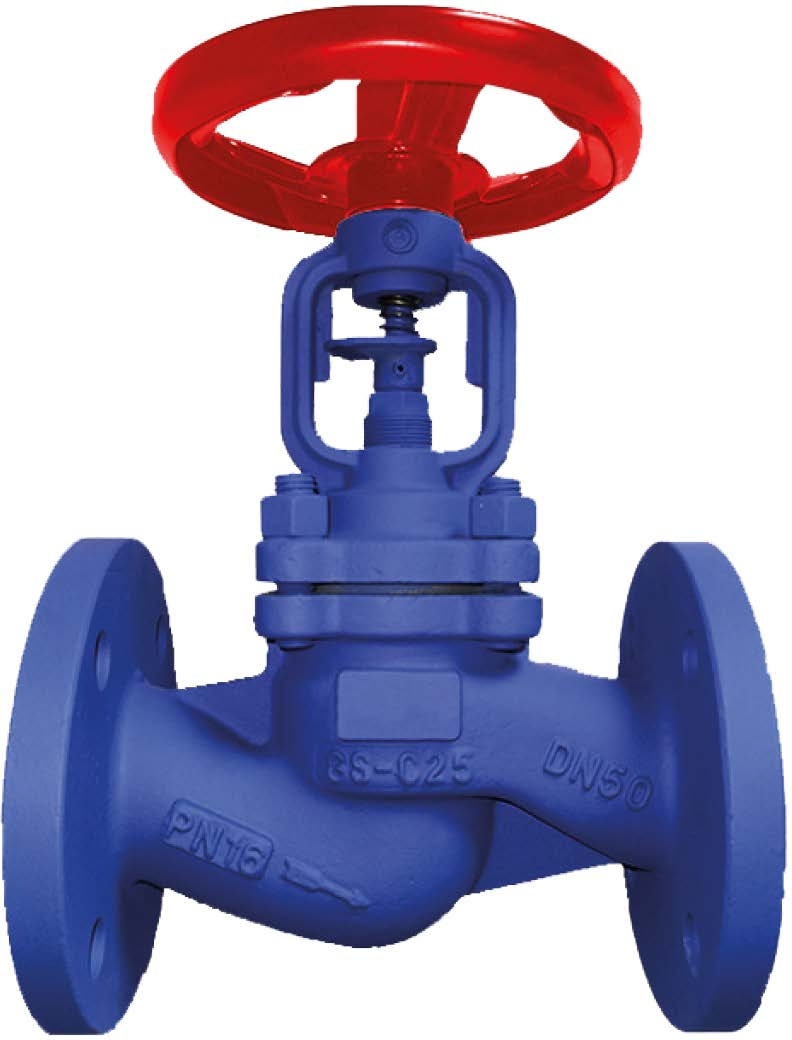

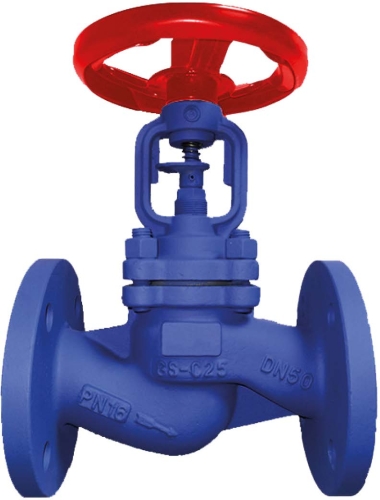

SCREW DOWN NON RETURN (SDNR)
| DN | Code | Flange OD | PCD | Holes x Dia | Face to Face |
|---|---|---|---|---|---|
| 15 | 755326NR | 95 | 65 | 4 | 14 | 130 |
| 20 | 755327NR | 105 | 75 | 4 | 14 | 150 |
| 25 | 755328NR | 115 | 85 | 4 | 14 | 160 |
| 32 | 755329NR | 140 | 100 | 4 | 18 | 180 |
| 40 | 755330NR | 150 | 110 | 4 | 18 | 200 |
| 50 | 755331NR | 165 | 125 | 8 | 18 | 230 |
| 65 | 755332NR | 185 | 145 | 8 | 18 | 290 |
| 80 | 755333NR | 200 | 160 | 8 | 18 | 310 |
| 100 | 755334NR | 235 | 190 | 8 | 22 | 350 |
| 125 | 755335NR | 270 | 220 | 8 | 26 | 400 |
| 150 | 755336NR | 300 | 250 | 8 | 26 | 480 |
Diğer DIN Normu Vanalar ürünlerinden..
Dın Vana
*FOD: FLANGE OUTER DIA *PCD: PITCH CIRCLE DIA *ALL DIMENSIONS ARE IN MM.
