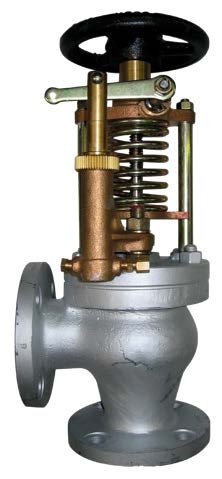

CAST STEEL BODY, STAINLESS STEEL TRIM -WITH DNV-GL CLASS CERTIFICATE
| DN |
Code |
Flange OD |
PCD |
HolesxDia |
Face to Face |
| 50 | 874523 K10 | 155 | 120 | 4 | 19 | 120 |
| 65 | 874524 K10 | 175 | 140 | 4 | 19 | 130 |
| 80 | 874525 K10 | 185 | 150 | 4 | 19 | 140 |
| 100 | 874526 K10 | 210 | 175 | 8 | 19 | 160 |
| 125 | 874527 K10 | 250 | 210 | 8 | 23 | 180 |
| 150 | 874528 K10 | 280 | 240 | 8 | 23 | 205 |
| 200 | 874529 K10 | 330 | 290 | 12 | 23 | 230 |
