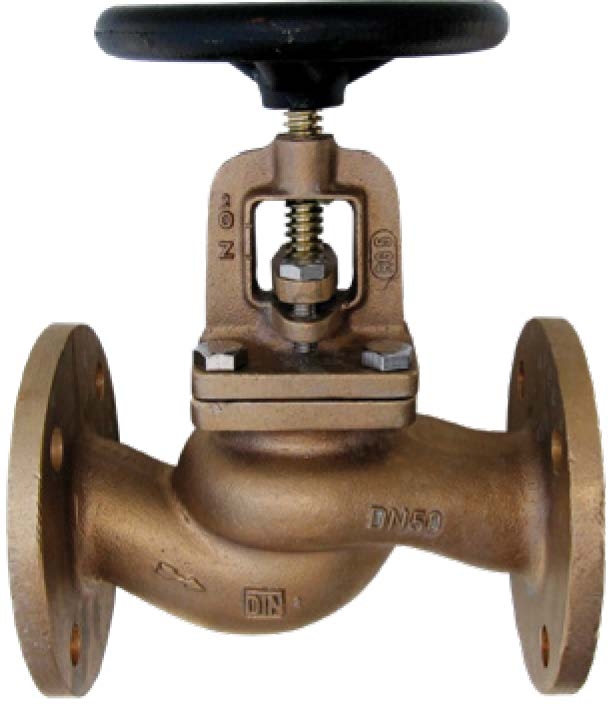

GLOBE VALVES, DIN PN16

BRONZE BODY & TRIM, BOLTED BONNET, STOP (FIXED DISC)

GSMARİNE

DN Code Flange OD PCD Holes x Dia Face to Face
15 755201 95 65 4 | 14 130
20 755202 105 75 4 | 14 150
25 755203 115 85 4 | 14 160
32 755204 140 100 4 | 18 180
40 755205 150 110 4 | 18 200
50 755206 165 125 4 | 18 230
Diğer DIN Normu Vanalar ürünlerinden..

Dın Vana

*FOD: FLANGE OUTER DIA *PCD: PITCH CIRCLE DIA *ALL DIMENSIONS ARE IN MM.
