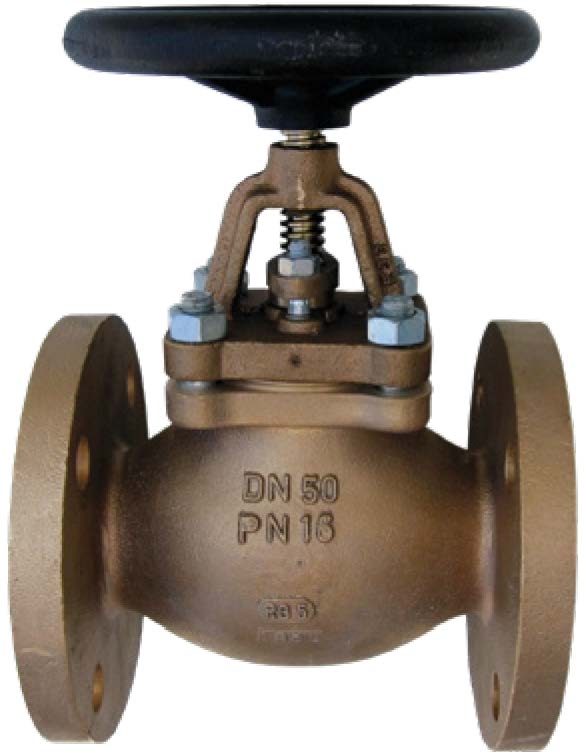

GLOBE VALVES, DIN PN16

BRONZE BODY & TRIM, UNION BONNET, STOP (FIXED DISC) SHORT PATTERN
DN Code Flange OD PCD Holes x Dia Face to Face
15 755121 95 65 4 | 14 70
20 755122 105 75 4 | 14 80
25 755123 115 85 4 | 14 90
32 755124 140 100 4 | 18 105
40 755125 150 110 4 | 18 120
50 755126 165 125 4 | 18 140
Diğer DIN Normu Vanalar ürünlerinden..

Dın Vana

*FOD: FLANGE OUTER DIA *PCD: PITCH CIRCLE DIA *ALL DIMENSIONS ARE IN MM.
