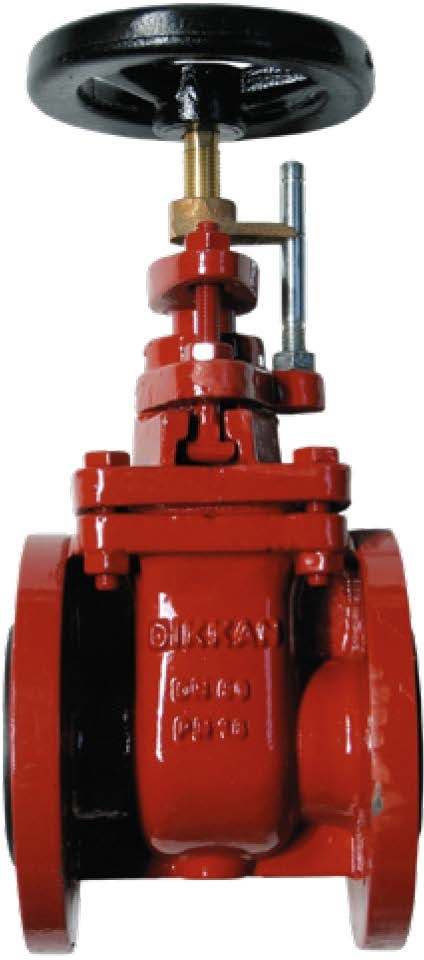

GATE VALVES- DIN PN10 / PN16 FLANGED

NODULAR CAST IRON BODY, BRONZE TRIM, WITH LR CLASS CERTIFICATE

DN	Code	Flange OD	PCD	Holes x Dia	Face to Face
40	755661	150	110	4 \| 18	140
50	755662	165	125	4 \| 18	150
65	755663	185	125	4 \| 18	170
80	755664	200	160	8 \| 18	180
100	755665	220	180	8 \| 18	190
125	755666	250	210	8 \| 18	200
150	755667	285	240	8 \| 22	210
200	755668	340	295	8 \| 22	230
250	755669	395	350	12 \| 22	250
300	755670	445	400	12 \| 22	270

Diğer DIN Normu Vanalar ürünlerinden..

Dın Vana

FOD: FLANGE OUTER DIA PCD: PITCH CIRCLE DIA *ALL DIMENSIONS ARE IN MM.

Screw Down Non Return (sdnr)

Globe Valves, Bellow Sealed Type For Thermo Oıl Applıcatıon Nodular Cast Iron Body & Staınless Steel Trım, Dın Pn16

STOP (FIXED DISC)

Screw Down Non Return (sdnr)

Angle Valves, Dın Pn16 / Pn25 / Pn40 Cast Steel Body & Staınless Steel Trım, Wıth Lr Class Certıfıcate

STOP (FIXED DISC)

Screw Down Non Return (sdnr)

Angle Valves, Dın Pn10 / Pn16 Cast Iron Body & Bronze Trım

STOP (FIXED DISC)

Screw Down Non Return (sdnr)

Globe Valves, Dın Pn16

BRONZE BODY & TRIM, BOLTED BONNET, STOP (FIXED DISC)

Butterfly Valves, Lug Type, Dın Pn 16

LOCK LEVER OPERATED, WITH DNV-GL CLASS CERTIFICATE

Ball Valves, Wafer Type Dın Pn40

SS316 STAINLESS STEEL BODY & TRIM

Ball Valves, Flanged Type Dın Pn16/ Pn40

SS316 STAINLESS STEEL BODY & TRIM

Aır Vent Heads, Dın Pn10/ Pn16 Flanged, Ball Type

FCD450 BODY, STAINLESS STEEL TRIM - WITH CLASS TYPE APPROVAL CERTIFICATE HOT DIP GALVANIZED, SUITABLE FOR USE AT BOTH OIL & WATER TANKS

Duo Check Valves, Wafertype- Dın Pn10

Gate Valves- Dın Pn10 / Pn16 Flanged

CAST IRON BODY, BRONZE TRIM

Butterfly Valves, Double Flange Type, Dın Short Pattern Pn 10

WORM GEAR OPERATED, WITH DNV-GL CLASS CERTIFICATE

Butterfly Valves, Lug Type, Dın Pn 10

WORM GEAR OPERATED, WITH DNV-GL CLASS CERTIFICATE

Globe Valves, Dın Pn10 / Pn16 Nodular Cast Iron Body & Bronze Trım, Wıth Lr Class Certıfıcate

STOP (FIXED DISC)

Quıck Closıng Angle Valves, Dın Pn10/ Pn16 Flanged

NODULAR CAST IRON BODY, STAINLESS STEEL TRIM, WITH LR CLASS CERTIFICATE

Globe Valves, Dın Pn16 / Pn25 / Pn40 Cast Steel Body, Staınless Steel Trım, Wıth Lr Class Certıfıcate

STOP (FIXED DISC)

Globe Valves, Dın Pn16

BRONZE BODY & TRIM, UNION BONNET, STOP (FIXED DISC) SHORT PATTERN

Quıck Closıng Globe Valves, Dın Pn10/ Pn16 Flanged

NODULAR CAST IRON BODY, STAINLESS STEEL TRIM, WITH LR CLASS CERTIFICATE

Mud Boxes Wıth Staınless Steel Basket

BRONZE DRAIN PLUG, DIN PN16 FLANGED

Swıng Check Valves

CAST IRON BODY, BRONZE TRIM, METAL SEATED DIN PN10 /16 FLANGED

Storm Valves, Vertıcal Pattern, Dın Pn10/ Pn16 Flanged

NODULAR CAST IRON BODY/ BRONZE TRIM, WITH LR CLASS CERTIFICATE

Angle Valves, Dın Pn16

BRONZE BODY & TRIM, BOLTED BONNET, STOP (FIXED DISC)

Globe Valves, Dın Pn10 / Pn16 Cast Iron Body & Bronze Trım

STOP (FIXED DISC)
