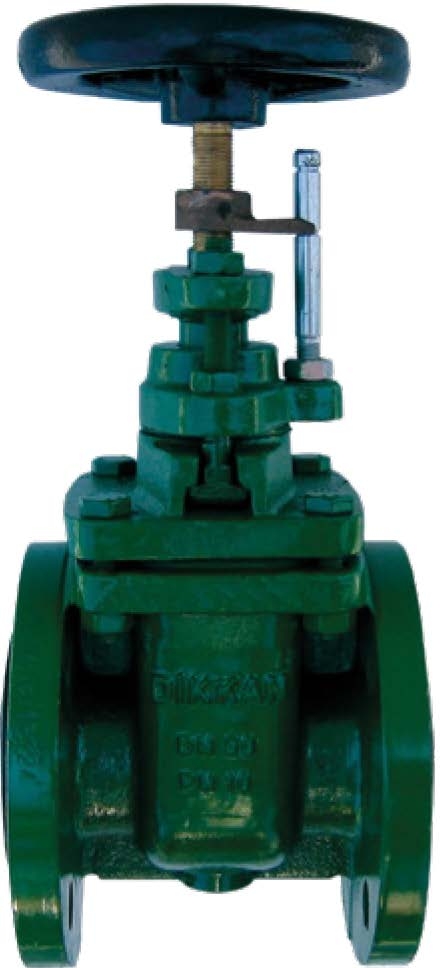

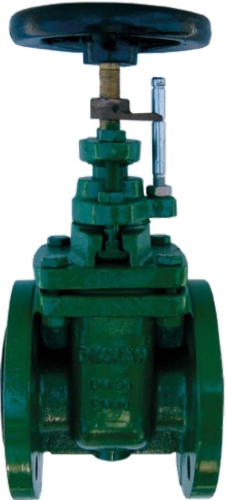

GATE VALVES- DIN PN10 / PN16 FLANGED

CAST IRON BODY, BRONZE TRIM

DN	Code	Flange OD	PCD	Holes x Dia	Face to Face
40	755571	150	110	4 \| 18	140
50	755572	165	125	4 \| 18	150
65	755573	185	145	4 \| 18	170
80	755574	200	160	8 \| 18	180
100	755577	220	180	8 \| 18	190
125	755576	250	210	8 \| 18	200
150	755577	285	240	8 \| 22	210
200	755578	340	295	8 \| 22	230
250	755579	395	350	12 \| 22	250
300	755580	445	400	12 \| 22	270

Diğer DIN Normu Vanalar ürünlerinden..

Dın Vana

FOD: FLANGE OUTER DIA PCD: PITCH CIRCLE DIA *ALL DIMENSIONS ARE IN MM.
