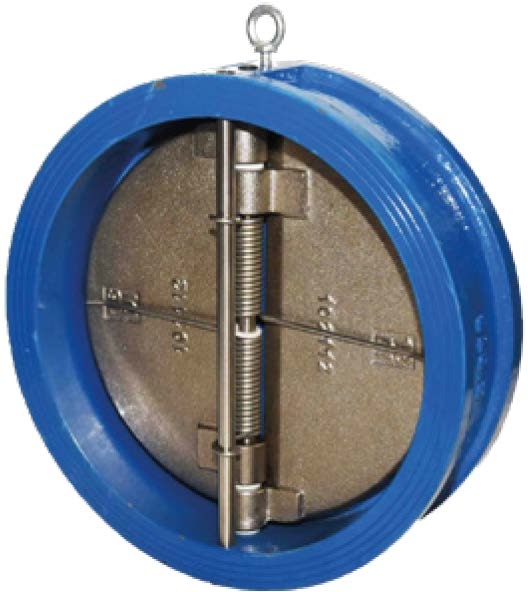

DUO CHECK VALVES, WAFERTYPE- DIN PN10


DN Code Body Stem Disc O.D. L
100 756074 FCD 450 Alu-Bronze NBR 162 64
125 756075 FCD 450 Alu-Bronze NBR 192 70
150 756076 FCD 450 Alu-Bronze NBR 218 76
200 756077 FCD 450 Alu-Bronze NBR 273 89
250 756078 FCD 450 Alu-Bronze NBR 328 114
300 756079 FCD 450 Alu-Bronze NBR 378 114
350 756080 FCD 450 Alu-Bronze NBR 438 127
400 756081 FCD 450 Alu-Bronze NBR 489 140
450 756082 FCD 450 Alu-Bronze NBR 539 152
500 756083 FCD 450 Alu-Bronze NBR 594 153
Diğer DIN Normu Vanalar ürünlerinden..

Dın Vana

*FOD: FLANGE OUTER DIA *PCD: PITCH CIRCLE DIA *ALL DIMENSIONS ARE IN MM.
