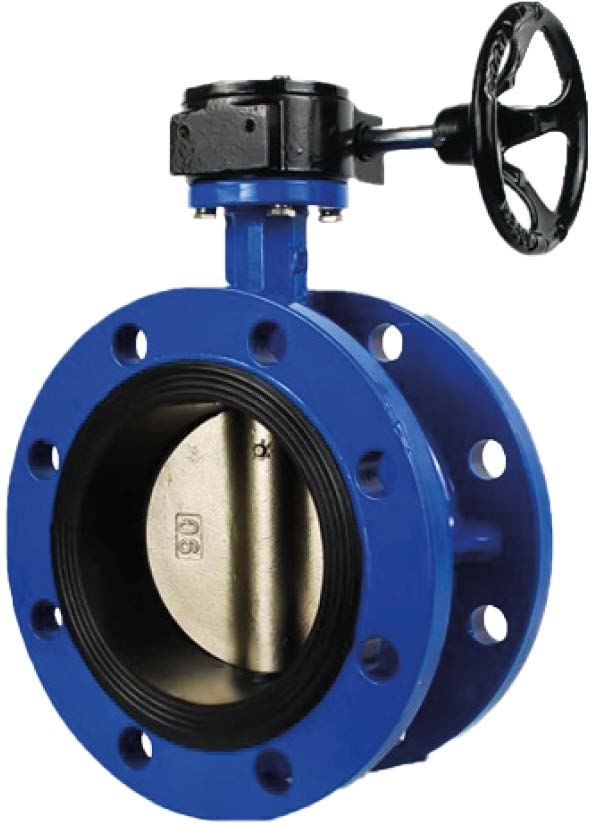

BUTTERFLY VALVES, FLANGE TYPE, F7480 JIS 1OK
WORM GEAR OPERATED -WITH DNV-GL CLASS CERTIFICATE
| DN | Code | Body | Stem | Disc | Seat | PCD | Holes | Holes | Holes | L |
|---|---|---|---|---|---|---|---|---|---|---|
| 80 | 752380CS10K | SC480 | SUS410 | Alu-Bronze | NBR | 840 | ||||
| 100 | 752360CS10K | SC480 | SUS410 | Alu-Bronze | NBR | 175 | ||||
| 125 | 752361CS10K | SC480 | SUS410 | Alu-Bronze | NBR | 210 | ||||
| 150 | 752362CS10K | SC480 | SUS410 | Alu-Bronze | NBR | 240 | ||||
| 200 | 752363CS10K | SC480 | SUS410 | Alu-Bronze | NBR | 290 | ||||
| 250 | 752364CS10K | SC480 | SUS410 | Alu-Bronze | NBR | 355 | ||||
| 300 | 752365CS10K | SC480 | SUS410 | Alu-Bronze | NBR | 400 | ||||
| 350 | 752366CS10K | SC480 | SUS410 | Alu-Bronze | NBR | 445 | ||||
| 400 | 752367CS10K | SC480 | SUS410 | Alu-Bronze | NBR | 510 | ||||
| 450 | 752368CS10K | SC480 | SUS410 | Alu-Bronze | NBR | 565 | ||||
| 500 | 752369CS10K | SC480 | SUS410 | Alu-Bronze | NBR | 620 | ||||
| 550 | 752369CS10K | SC480 | SUS410 | Alu-Bronze | NBR | 680 | ||||
| 600 | 752370CS10K | SC480 | SUS410 | Alu-Bronze | NBR | 730 | ||||
| 700 | 752371CS10K | SC480 | SUS410 | Alu-Bronze | NBR | 840 |
