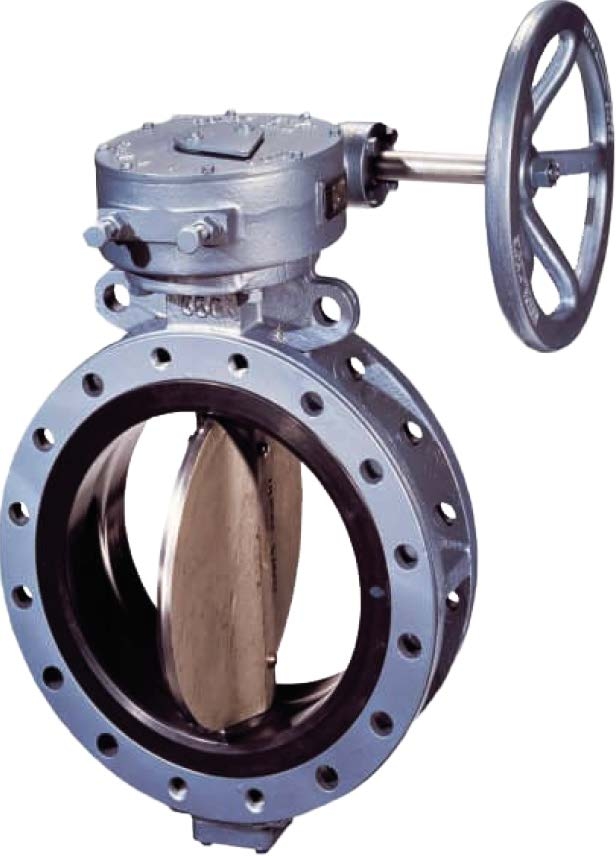

BUTTERFLY VALVES, DOUBLE FLANGE TYPE, DIN SHORT PATTERN PN 10
WORM GEAR OPERATED, WITH DNV-GL CLASS CERTIFICATE
| DN | Code | Body | Stem | Disc | Seat | PCD | Holes no. x Dia | L |
|---|---|---|---|---|---|---|---|---|
| 50 | 754581 | GGG40.3 | Stainless Steel | Alu-Bronze | NBR | 125 | ||
| 56 | 754582 | GGG40.3 | Stainless Steel | Alu-Bronze | NBR | 145 | ||
| 80 | 754583 | GGG40.3 | Stainless Steel | Alu-Bronze | NBR | 160 | ||
| 100 | 754584 | GGG40.3 | Stainless Steel | Alu-Bronze | NBR | 180 | ||
| 125 | 754585 | GGG40.3 | Stainless Steel | Alu-Bronze | NBR | 210 | ||
| 150 | 754586 | GGG40.3 | Stainless Steel | Alu-Bronze | NBR | 240 | ||
| 200 | 754587 | GGG40.3 | Stainless Steel | Alu-Bronze | NBR | 295 | ||
| 250 | 754588 | GGG40.3 | Stainless Steel | Alu-Bronze | NBR | 350 | ||
| 300 | 754589 | GGG40.3 | Stainless Steel | Alu-Bronze | NBR | 400 | ||
| 350 | 754590 | GGG40.3 | Stainless Steel | Alu-Bronze | NBR | 460 | ||
| 400 | 754591 | GGG40.3 | Stainless Steel | Alu-Bronze | NBR | 515 | ||
| 450 | 754592 | GGG40.3 | Stainless Steel | Alu-Bronze | NBR | 565 | ||
| 500 | 754593 | GGG40.3 | Stainless Steel | Alu-Bronze | NBR | 620 | ||
| 600 | 754594 | GGG40.3 | Stainless Steel | Alu-Bronze | NBR | 725 |
Diğer DIN Normu Vanalar ürünlerinden..
Dın Vana
*FOD: FLANGE OUTER DIA *PCD: PITCH CIRCLE DIA *ALL DIMENSIONS ARE IN MM.
