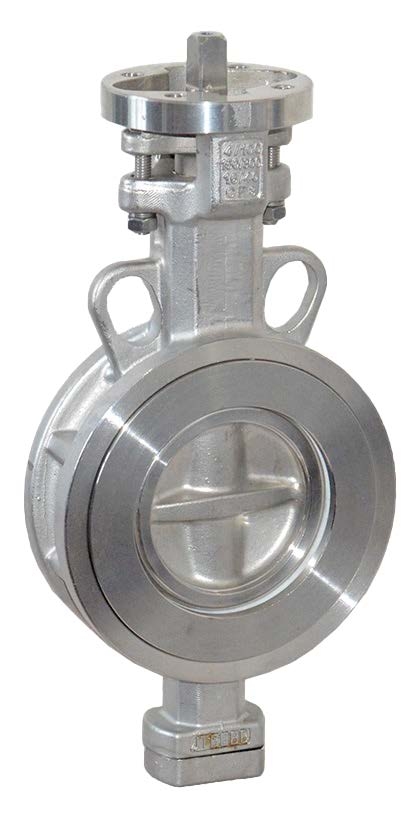

BUTTERFLY VALVES, DOUBLE ECCENTRIC HIGH PERFORMANCE WAFER TYPE
UNDRILLED - CAN BE DRILLED AS PER JIS 10K - 16K - 20K - PN10 - PN25 FLANGES
| DN | Code | Body | Stem | Disc | Seat | L |
|---|---|---|---|---|---|---|
| 80 | 75HVHPW080 | SC480 | 17-4 PH (SUS630) | SCS14 | VITON or TEFLON | 48 |
| 100 | 75HVHPW100 | SC480 | 17-4 PH (SUS630) | SCS14 | VITON or TEFLON | 54 |
| 125 | 75HVHPW125 | SC480 | 17-4 PH (SUS630) | SCS14 | VITON or TEFLON | 57 |
| 150 | 75HVHPW150 | SC480 | 17-4 PH (SUS630) | SCS14 | VITON or TEFLON | 57 |
| 200 | 75HVHPW200 | SC480 | 17-4 PH (SUS630) | SCS14 | VITON or TEFLON | 64 |
| 250 | 75HVHPW250 | SC480 | 17-4 PH (SUS630) | SCS14 | VITON or TEFLON | 71 |
| 300 | 75HVHPW300 | SC480 | 17-4 PH (SUS630) | SCS14 | VITON or TEFLON | 81 |
| 350 | 75HVHPW350 | SC480 | 17-4 PH (SUS630) | SCS14 | VITON or TEFLON | 92 |
| 400 | 75HVHPW400 | SC480 | 17-4 PH (SUS630) | SCS14 | VITON or TEFLON | 102 |
| 450 | 75HVHPW450 | SC480 | 17-4 PH (SUS630) | SCS14 | VITON or TEFLON | 114 |
