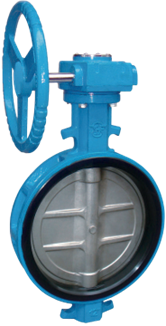

BUTTERFLY VALVES, CONCENTRIC WAFERTYPE, WORM GEAR OPERATED
SUITABLE FOR MOUNTING BETWEEN JIS 5K/10K, PN6-PN10-PN16 FLANGES
| DN | Code | Body | Stem | Disc | Seat | L |
|---|---|---|---|---|---|---|
| 65 | 752212 | FC 200 | SUS410 | SCS13 | NBR | 46 |
| 80 | 752213 | FC 200 | SUS410 | SCS13 | NBR | 46 |
| 100 | 752214 | FC 200 | SUS410 | SCS13 | NBR | 52 |
| 125 | 752215 | FC 200 | SUS410 | SCS13 | NBR | 56 |
| 150 | 752216 | FC 200 | SUS410 | SCS13 | NBR | 56 |
| 200 | 752217 | FC 200 | SUS410 | SCS13 | NBR | 60 |
| 250 | 752218 | FC 200 | SUS410 | SCS13 | NBR | 68 |
| 300 | 752219 | FC 200 | SUS410 | SCS13 | NBR | 78 |
| 350 | 752220 | FC 200 | SUS410 | SCS13 | NBR | 78 |
| 400 | 752221 | FC 200 | SUS410 | SCS13 | NBR | 102 |
| 450 | 752222 | FC 200 | SUS410 | SCS13 | NBR | 114 |
| 500 | 752223 | FC 200 | SUS410 | SCS13 | NBR | 127 |
| 550 | 752224 | FC 200 | SUS410 | SCS13 | NBR | 154 |
| 600 | 752225 | FC 200 | SUS410 | SCS13 | NBR | 154 |
| 650 | 752226 | FC 200 | SUS410 | SCS13 | NBR | 165 |
| 700 | 752227 | FC 200 | SUS410 | SCS13 | NBR | 165 |
