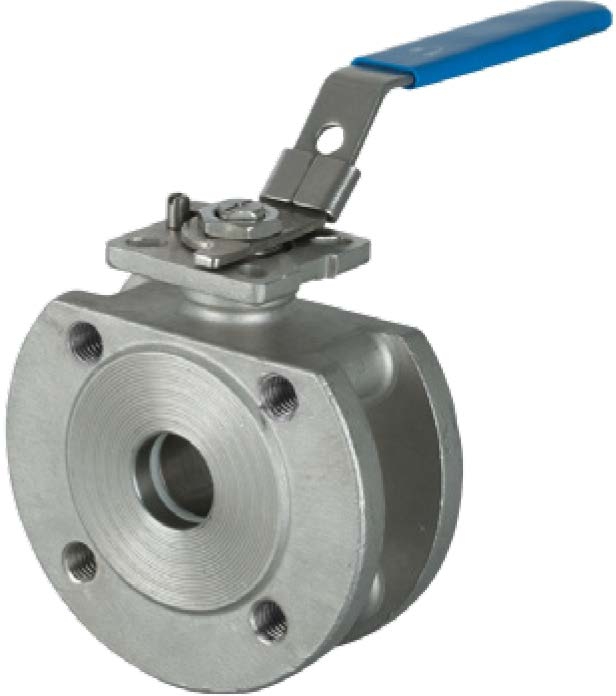

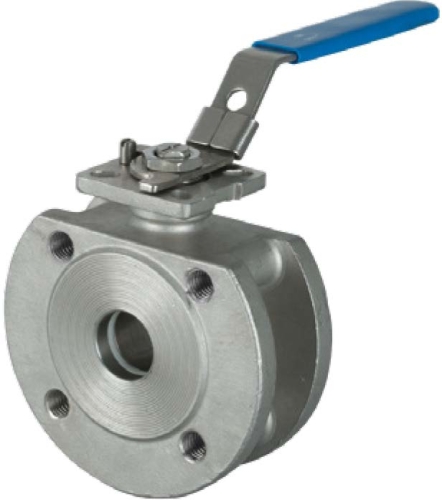

BALL VALVES, WAFER TYPE DIN PN40

SS316 STAINLESS STEEL BODY & TRIM
DN Code Flange OD PCD Holes x Dia Face to Face
15 756791 95 65 4 | 14 115
20 756792 105 75 4 14 120
25 756793 115 85 4 14 125
32 756794 140 100 4 18 130
40 756795 150 110 4 18 140
50 756796 165 125 4 18 150
Diğer DIN Normu Vanalar ürünlerinden..

Dın Vana

*FOD: FLANGE OUTER DIA *PCD: PITCH CIRCLE DIA *ALL DIMENSIONS ARE IN MM.
