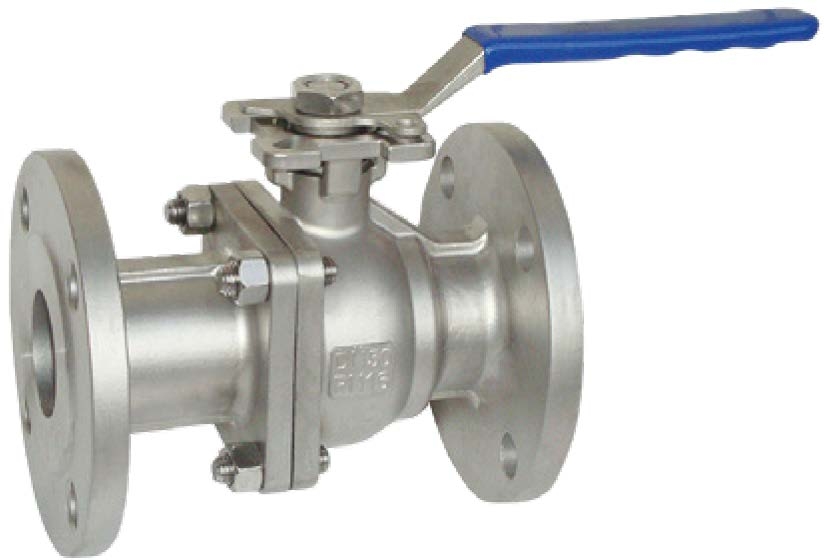

BALL VALVES, FLANGED TYPE DIN PN16/ PN40

SS316 STAINLESS STEEL BODY & TRIM
DN Code Flange OD PCD Holes x Dia Face to Face
15 756765 95 65 4 | 14 115
20 756766 105 75 4 14 120
25 756767 115 85 4 14 125
32 756768 140 100 4 18 130
40 756769 150 110 4 18 140
50 756770 165 125 4 18 150
Diğer DIN Normu Vanalar ürünlerinden..

Dın Vana

*FOD: FLANGE OUTER DIA *PCD: PITCH CIRCLE DIA *ALL DIMENSIONS ARE IN MM.
