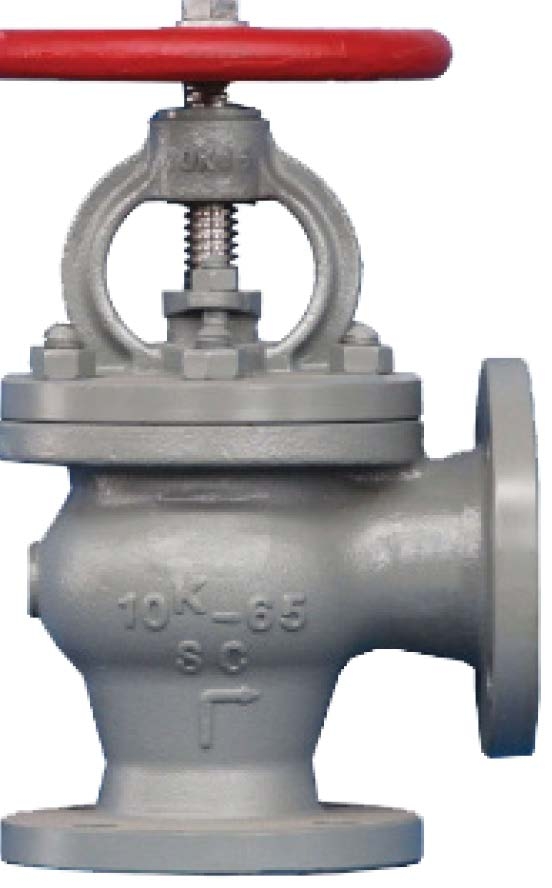

ANGLE VALVES,JIS 10K-WITH DNV-GL CLASS CERTIFICATE
CAST STEEL BODY, STAINLESS STEEL TRIM, F-7320 STOP (FIXED DISC)
| DN | Code | Flange OD | PCD | Holes x Dia | Face to Face |
|---|---|---|---|---|---|
| 50 | 750421 | 155 | 120 | 4 | 19 | 120 |
| 65 | 750422 | 175 | 140 | 4 | 19 | 130 |
| 80 | 750423 | 185 | 150 | 8 | 19 | 140 |
| 100 | 750424 | 210 | 175 | 8 | 19 | 160 |
| 125 | 750425 | 250 | 210 | 8 | 23 | 180 |
| 150 | 750426 | 280 | 240 | 8 | 23 | 205 |
| 200 | 750427 | 330 | 290 | 12 | 23 | 230 |
| 250 | 750428 | 400 | 355 | 12 | 25 | 290 |
| 300 | 750429 | 445 | 400 | 16 | 25 | 320 |
| 350 | 750430 | 490 | 445 | 16 | 25 | 360 |
