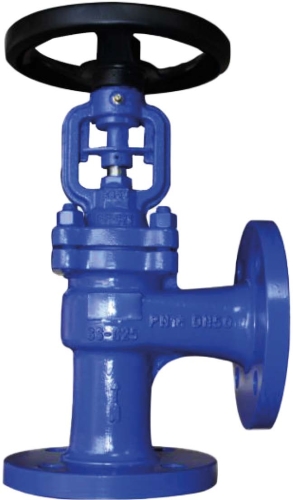

ANGLE VALVES, DIN PN16 / PN25 / PN40 CAST STEEL BODY & STAINLESS STEEL TRIM, WITH LR CLASS CERTIFICATE
STOP (FIXED DISC)
| DN | Code | Flange OD | PCD | Holes x Dia | Face to Face |
|---|---|---|---|---|---|
| 15 | 755341 | 95 | 65 | 4 | 14 | 90 |
| 20 | 755342 | 105 | 75 | 4 | 14 | 95 |
| 25 | 755343 | 115 | 85 | 4 | 14 | 100 |
| 32 | 755344 | 140 | 100 | 4 | 18 | 105 |
| 40 | 755345 | 150 | 100 | 4 | 18 | 115 |
| 50 | 755346 | 165 | 125 | 8 | 18 | 125 |
| 65 | 755347 | 185 | 145 | 8 | 18 | 145 |
| 80 | 755348 | 200 | 160 | 8 | 18 | 155 |
| 100 | 755349 | 235 | 190 | 8 | 22 | 175 |
| 125 | 755350 | 270 | 220 | 8 | 26 | 200 |
| 150 | 755351 | 300 | 250 | 8 | 26 | 225 |
Diğer DIN Normu Vanalar ürünlerinden..
Dın Vana
*FOD: FLANGE OUTER DIA *PCD: PITCH CIRCLE DIA *ALL DIMENSIONS ARE IN MM.
