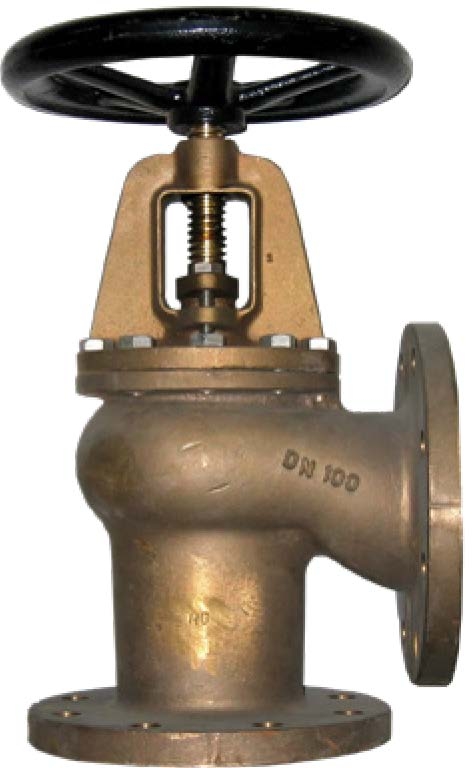

ANGLE VALVES, DIN PN16

BRONZE BODY & TRIM, BOLTED BONNET, STOP (FIXED DISC)
DN Code Flange OD PCD Holes x Dia Face to Face
15 755216 95 65 4 | 14 90
20 755217 105 75 4 | 14 95
25 755218 115 85 4 | 14 100
32 755219 140 100 4 | 18 105
40 755220 150 110 4 | 18 115
50 755221 165 125 4 | 18 125
Diğer DIN Normu Vanalar ürünlerinden..

Dın Vana

*FOD: FLANGE OUTER DIA *PCD: PITCH CIRCLE DIA *ALL DIMENSIONS ARE IN MM.
