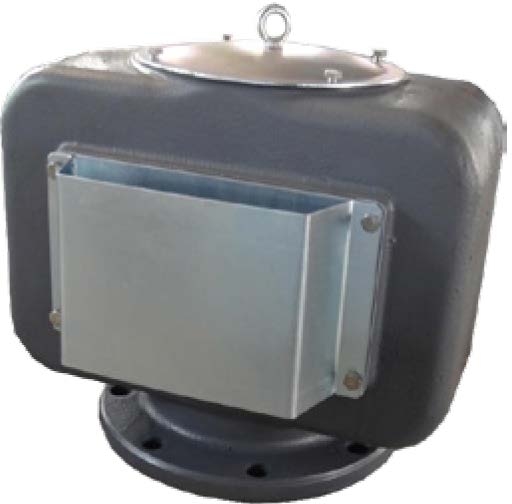

AIR VENT HEADS, JIS SK FLANGED, FLOAT DISC TYPE
FCD450 BODY, STAINLESS STEEL TRIM - WITH CLASS TYPE APPROVAL CERTIFICATE HOT DIP GALVANIZED, SUITABLE FOR USE AT BOTH OIL & WATER TANKS.
| DN | Code | Flange OD | PCD | Holes x Dia | Weight Kg |
|---|---|---|---|---|---|
| 50 | 872301 | 130 | 105 | 4 | 15 | 8 |
| 65 | 872302 | 155 | 130 | 4 15 | 13 |
| 80 | 872303 | 180 | 145 | 4 19 | 17 |
| 100 | 872304 | 200 | 165 | 8 19 | 23 |
| 125 | 872305 | 235 | 200 | 8 19 | 34 |
| 150 | 872306 | 265 | 230 | 8 19 | 47 |
| 200 | 872307 | 320 | 280 | 8 23 | 72 |
| 250 | 872308 | 385 | 345 | 12 23 | 120 |
| 300 | 872309 | 430 | 390 | 12 23 | 178 |
| 350 | 872310 | 480 | 435 | 12 25 | 196 |
| 400 | 872311 | 540 | 495 | 16 25 | 235 |
| 450 | 872312 | 605 | 605 | 16 25 | 298 |
