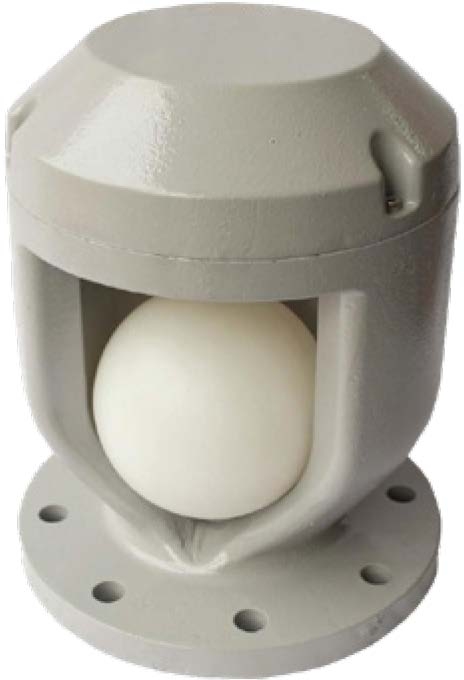

AIR VENT HEADS, DIN PN10/ PN16 FLANGED, BALL TYPE

FCD450 BODY, STAINLESS STEEL TRIM - WITH CLASS TYPE APPROVAL CERTIFICATE HOT DIP GALVANIZED, SUITABLE FOR USE AT BOTH OIL & WATER TANKS
DN Code Flange OD PCD Holes x Dia Weight Kg
50 872320 165 125 4 18 7
65 872321 185 145 4 18 9
80 872322 200 160 8 18 13
100 872323 220 180 8 18 18
125 872324 250 210 8 18 30
150 872325 385 240 8 22 40
200 872326 340 295 8 22 70
250 872327 405 355 12 26 110
Diğer DIN Normu Vanalar ürünlerinden..

Dın Vana

*FOD: FLANGE OUTER DIA *PCD: PITCH CIRCLE DIA *ALL DIMENSIONS ARE IN MM.
